Internal lining for injected SAFETY footwear
Ever since it was first established in 1986, TUBOFIL has launched a challenge to world markets, exporting its tubular fabric for injected footwear.
Thanks to its reliability, flexibility and last but not least, innovation, the company is today able to present a complete range of boot and footwear linings in PVC ,TR, TPU, PU for the rain, safety and fashion sectors. So today, TUBOFIL can rightly be considered as a leader in the industry.
Standard Linings
Available in two different types: the first, traditional type consists in the production of continuous tubular fabric. The second, latest-generation type, is a lining with an already-closed tip, ready for use on moulds, hence the name “ready sock”. Both are also used for SAFETY BOOTS and are made in all sizes, in a whole range of colours. Different size, coverage and elasticity are available upon customer request.

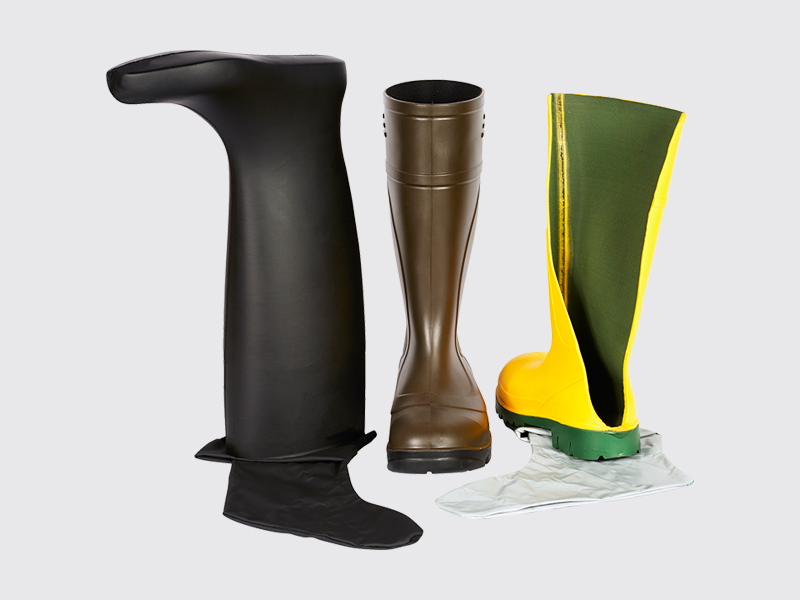

Pu Linings
Classic: 100% Polyester with PU coating
Abrasion Resistance: > 50.000 Cycles @ 12KPa
Thickness: 0.30 mm
Fleece (pile ) Liner: 90% Polyester – 10% Elastane with PU coating
Thickness: 0.50 mm
Fur Liner: 90% Polyester – 10% Elastane with PU coating
Thickness: 1.50 mm

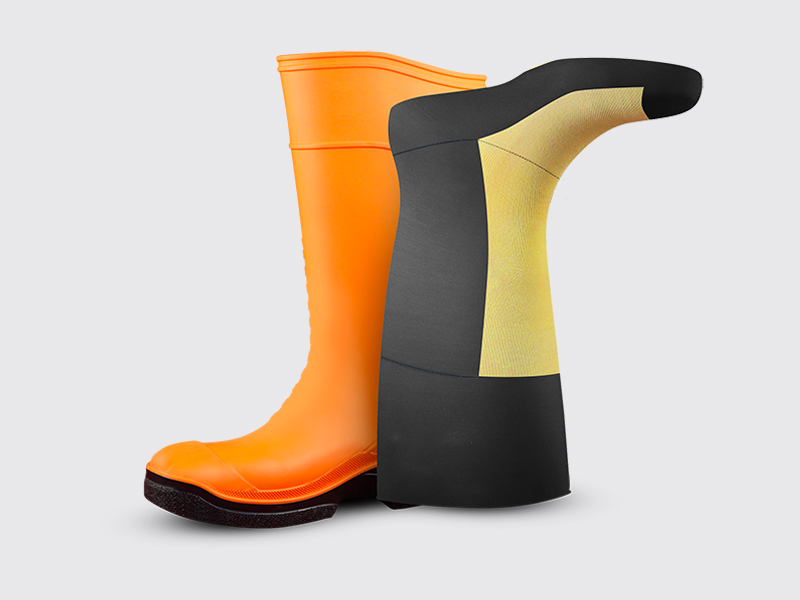

Cut Resistant Linings
Compositions: protective part: 90% para aramid fiber – 10% viscose
Back side: 80% polyamide – 20% elastane
Thickness protective part: 1.50 mm
Thickness back and side: 0.30 mm
Protective part: tested against cut from sharp object – tested against cut from impact EN 13595-4:2009 – Level 1
Back and side: resistant to pilling on fabric: 5 (NU Martindale – ISO 12945-2 7000 rotations) – resistant to pilling on wool: 5
(NU Martindale – ISO 12945-2 7000 rotations)
Description: cut resistant liner for protection in the front side

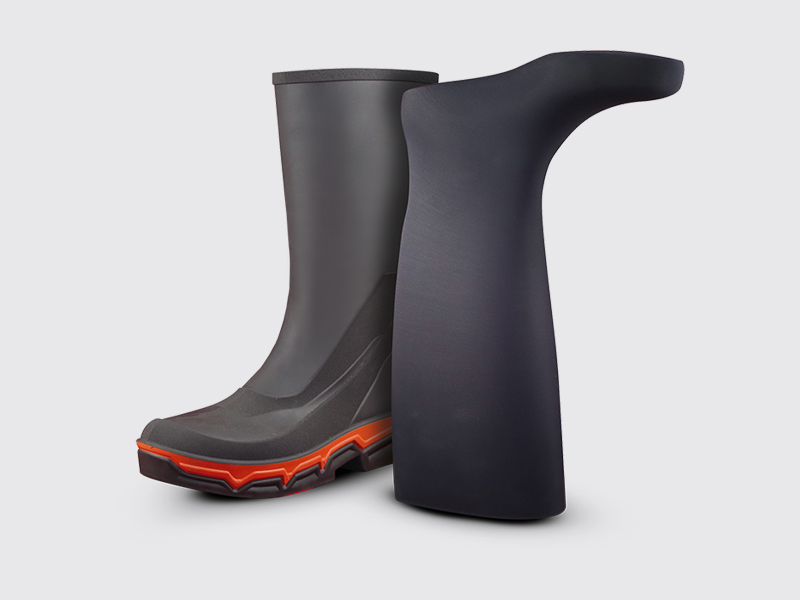

High elasticity heavy duty Linings
Composition: 80 % POLYAMIDE – 20 % ELASTANE
Thickness: 0.30 mm
Weight: 225 g/m ( +/- 5 % )
Resistance to Pilling on fabric: 5 NU Martindale – ISO 12945-2 7000 rotations
Stretch to Dynamometer: (+/- 15%) INSTRON 3343
3.6 kg: width : 100% – length : 160%
Resistant to pilling on wool: 5 (NU Martindale – ISO 12945-2 7000 rotations)

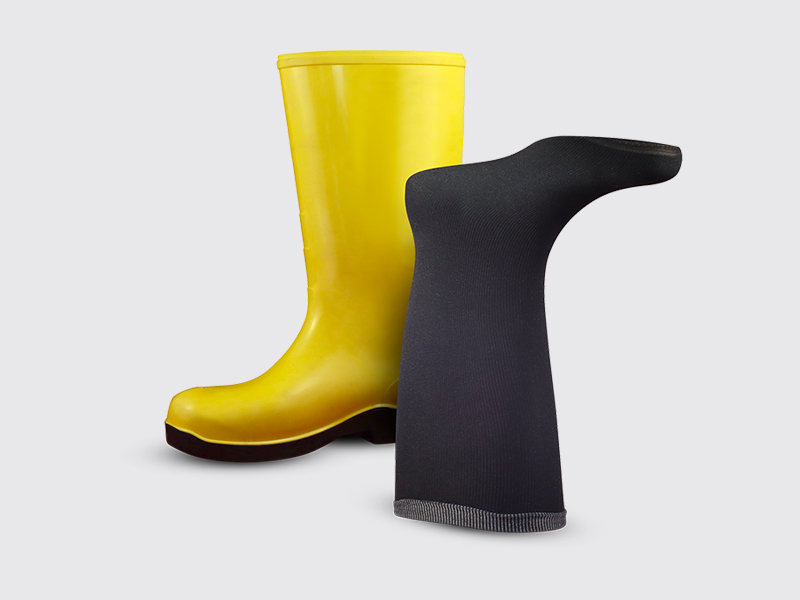

Antistatic - Bacteriostatic thermoregulating lining with carbon
Composition: 80% Polyester – 16% Polyamide – 4% Carbon
Thickness: 0.30 mm
Weight : 270 g/m ( +/- 5 % )
Speeds up the evaporation process, slows down the build-up of skin moisture and helps sweat to come out from footwear avoiding bacteria proliferation.

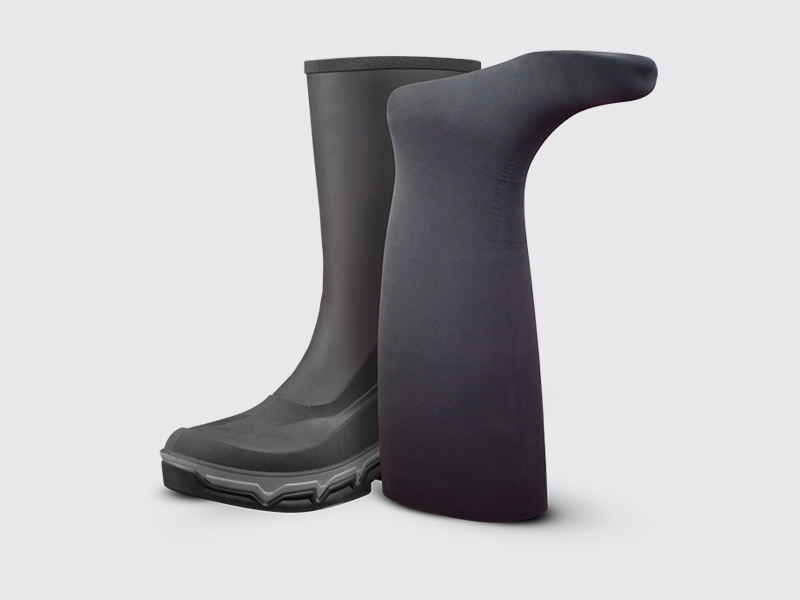

Neoprene thermal lining
Double side coated neoprene foam lining
Composition: Fabric 100% polyester, neoprenic foam inside
Weight: 600 g/m2
Abrasion Resistance ≥ 25.000 (12 Kpa)
Pilling: 4/5 (2.000 cycles)
Waterproofness ≥ 5.000 mm
Hight thermal protection and insulation

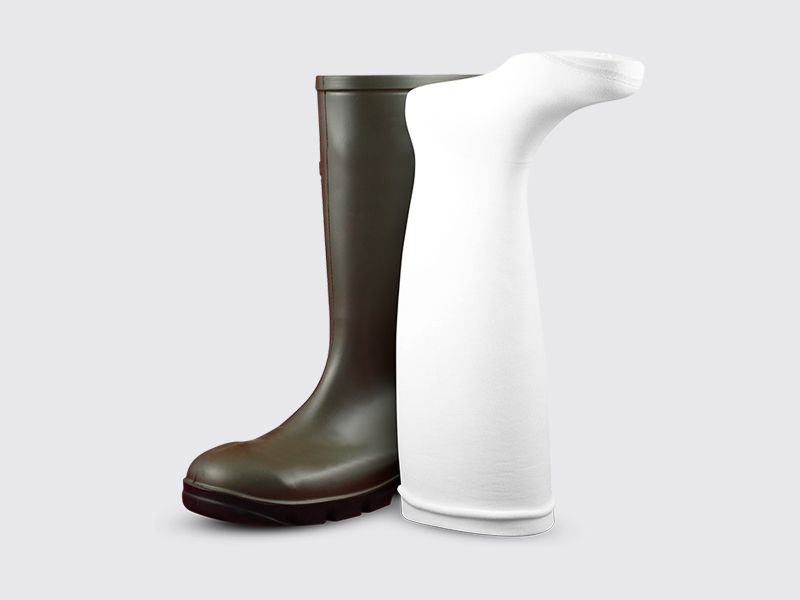

High coverage heavy duty lining ideal for rubber boots
Composition: 99% Polyester – 1% Elastomere
Thickness: 0.30 mm
Weight: 267 g/m (±5%)
Abrasion Resistance: ≥ 25.600 cycles (Dry) – EN ISO 20344:2011
Abrasion Resistance: ≥ 12.800 cycles (Wet) – EN ISO 20344:2011
Water absorption: 112 mg/cm2 – EN ISO 20344:2011
Water desorption: 99% – EN ISO 20344:2011
Tear Strength: 62 N – EN ISO 20344:2011

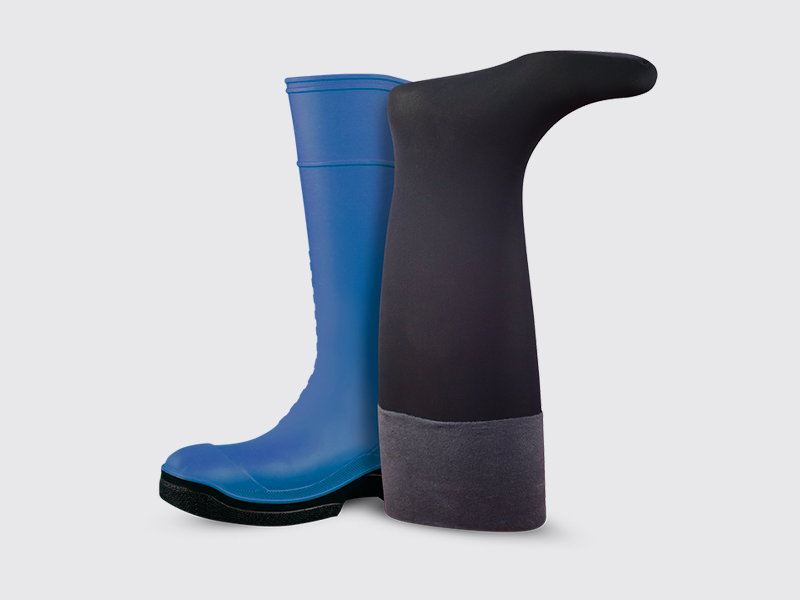

Thermal protection lining
Technical/particular fleece lining
Weight: 240g/m2
Composition: 57% Polyamide – 28% Polyester – 15% Elastane
Thickness: 0.40 mm
Resistance to Pilling: on fabric: 5 NU Martindale – ISO 12945-2 7000 rotations
Stretch to Dynamometer: (+/- 15%) INSTRON 3343
3.6 kg: width: 110% – length : 135%
Hallow fiber, Antibacterial, high thermal protection,
Moisture management, Pilling resistant
